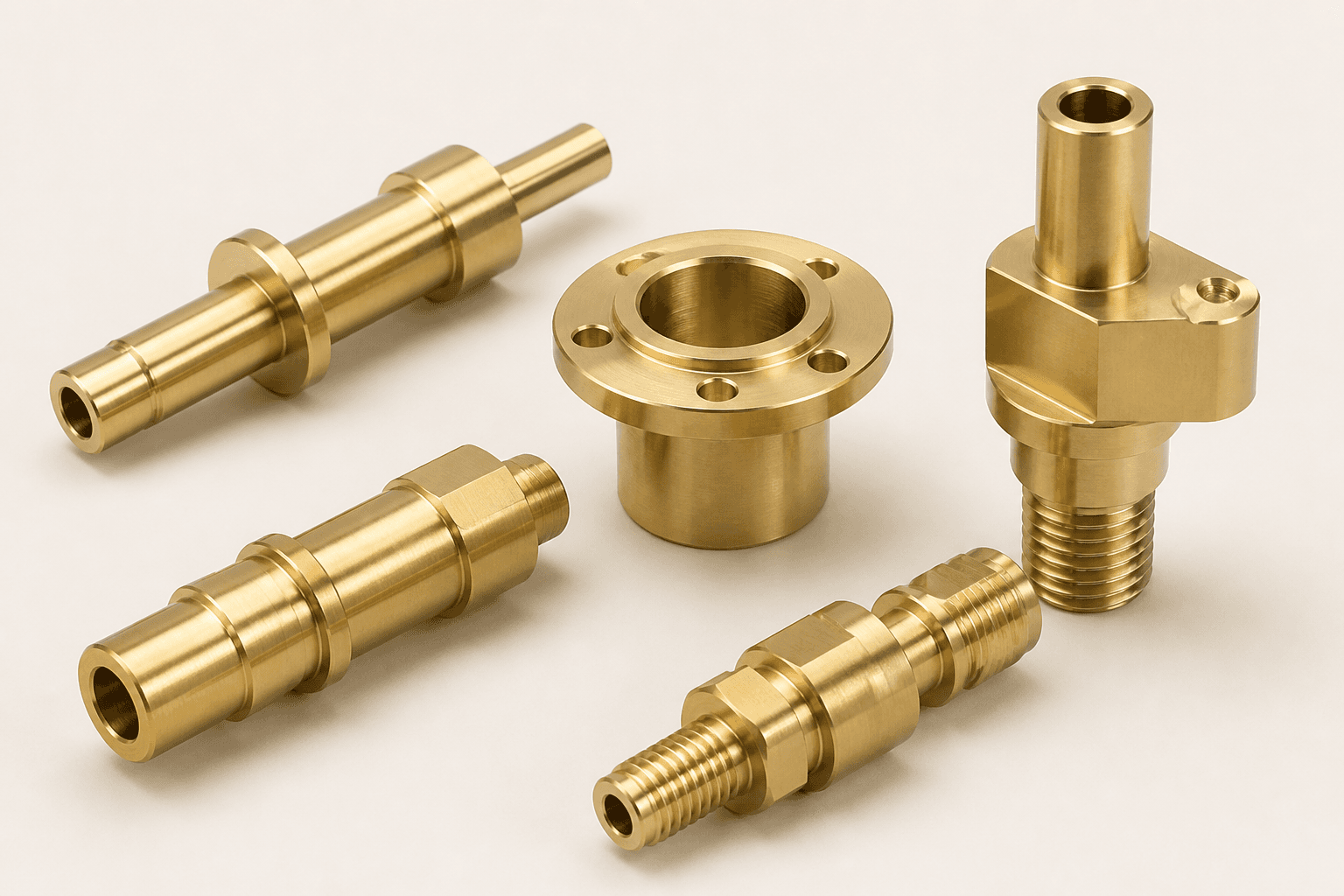

CNC Turned Brass Components

Also designated: Precision turned parts · Screw-machine parts · Custom brass CNC · OEM brass components

Drawing-controlled CNC turned and milled brass parts — from first-article sample to production volume.

Request factory quote First-article sample

General

What this product is

Custom CNC turned and milled brass parts when the drawing has no catalogue name. We machine from STEP/PDF or reverse a sample: turning, milling, drilling, tapping, plating and export packing. DFM notes come back with the first-article plan. Alloys are typically CW614N or CW617N; others on request. Confidential OEM parts are not shown in the public catalogue.

Send STEP/PDF or a sample. We return DFM notes, a sample, and a production plan with Incoterms 2020.

At a glance

— CNC turning and milling
— First-article inspection
— From STEP/PDF or sample
— Production after sample sign-off

STPL · Gold Supplier 12 yrs · CW614N / EN

Technical data

Specification

Product type: Custom CNC turned / milled brass OEM parts
Input: STEP, PDF, 2D drawing, or physical sample
Processes: Turning, milling, drilling, tapping, knurling, plating, packing
Typical alloys: CW614N / CW617N — others as specified
Tolerance: As per drawing; first-article report on request
Volume: Prototype / FAIR through repeat production
DFM: Machinability, thread, plating and packing notes returned with the quote

Materials

— CW614N / EN 12164
— CW617N / EN 12165
— As specified

Finishes

— Natural brass
— Nickel
— Tin
— As specified

Applications

— OEM confidential parts
— Replacement of a currently-sourced SKUs
— Industrial assemblies

Standards

— Material as specified (EN 12164 / 12165 typical)
— Drawing tolerances
— REACH / RoHS against the lot

Inspection

— First-article vs drawing
— In-process gauges on criticals
— Final visual and packing check

Documents with shipment

— Commercial invoice
— Packing list
— Certificate of origin
— Material note against the alloy of the lot
— REACH / RoHS statement on request, against plating and alloy of the lot
— ISO 9001 / 14001 / 45001 PDFs with the first RFQ reply
— First-article / dimensional report on request

Standard range

Variants we quote

Turned part

Round / hex bar, secondary ops

Milled feature part

Flats, slots, pockets from drawing

Replacement of a currently-sourced SKU

Reverse from sample to match fit

Commercial

Samples, packing, Incoterms

Manufacturer: Satyam Techworks Pvt. Ltd., Dared, Jamnagar — factory direct, not a trader
Alibaba: Gold Supplier · 12 years (since 2014)
Samples: First-article sample before the production lot. Typical sample 10–50 pcs.
MOQ: Quoted against SKU, plating and any tooling. Typical production from 500 pcs for catalogue bars; OEM inserts often 1,000+.
Lead time: Quoted on RFQ. Typical: samples 10–18 days after drawing freeze; production 25–40 days after sample approval.
Incoterms 2020: FOB Mundra / Nhava Sheva. All Incoterms 2020 accepted.
Packing: Poly bag / inner box / export carton. Palletised on request. Carton labels to your warehouse SKU and PO.
Payment: As agreed on the proforma. Standard export terms.

How to order this item

Send the fields below on the Export Desk RFQ. We reply within one business day with alloy, finish, first-article option and Incoterms 2020 (FOB Mundra / Nhava Sheva; all terms accepted) — as the manufacturer, not a trader.
