Technical sheet · Fittings

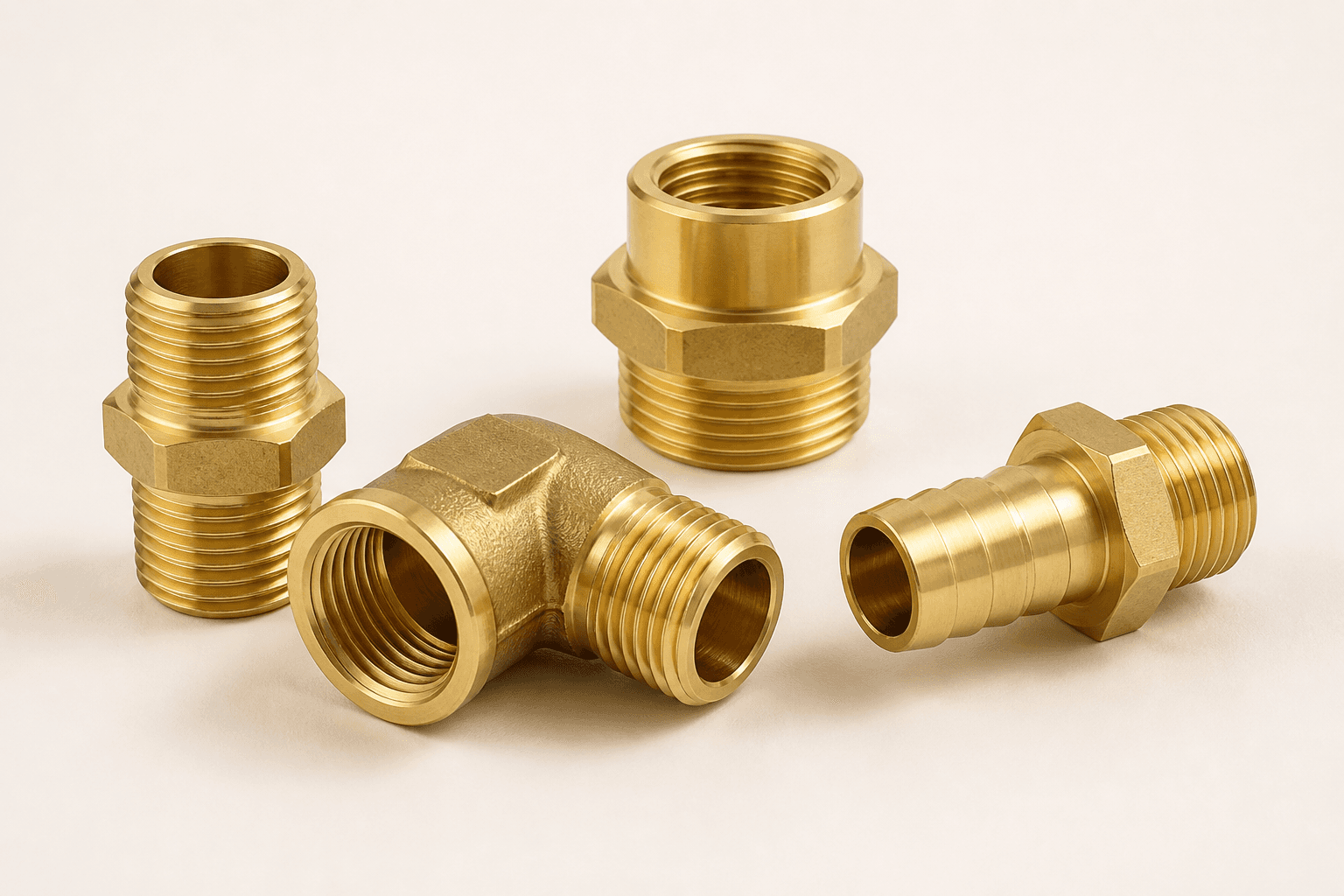

Brass Pipe & Hose Fittings

Also designated: BSP fittings · ISO 228 fittings · Pneumatic fittings · Compression fittings · Brass hose tails · Brass adaptors

Precision-threaded brass fittings for plumbing, pneumatic and industrial assemblies — BSP, ISO 228 / DIN 259, metric and drawing threads, gauged before packing.

Request factory quote First-article sample

General

What this product is

Brass pipe and hose fittings for water service, pneumatics and OEM manifolds. Threads are the inspection point: BSP (G) to ISO 228, DIN 259, metric, and NPT on request. We machine elbows, tees, nipples, adaptors, hose tails, reducers and drawing-controlled specials in CW617N / CW614N, nickel-plate when specified, and thread-check before packing. Importers reject lots when gauges fail — every production lot is gauged, not sampled only at the start.

Importers reject lots when threads fail gauges. We thread-check and label cartons for warehouse SKUs.

At a glance

— BSP (G) / ISO 228 / DIN 259 / metric / NPT on request
— Elbows, tees, nipples, adaptors, hose tails, reducers
— Nickel plated options
— Thread gauges on every lot

STPL · Gold Supplier 12 yrs · CW614N / EN

Technical data

Specification

Product type: Brass pipe, hose and pneumatic fittings — catalogue and drawing-controlled
Thread forms: BSPP / BSPT (G / R) to ISO 228; DIN 259; metric; NPT on request
Typical sizes: 1/8" to 2" BSP and equivalent metric — other sizes from drawing
Forms: Straight, elbow, tee, nipple, adaptor, reducer, hose tail, bulkhead, specials
Material: CW617N (hot-working / fittings) and CW614N (free-cutting) as the part requires
Finish: Natural brass or nickel plated
Sealing: Thread class and seat as per drawing; PTFE / O-ring not included unless specified
Pressure duty: Declared on the quote against size, thread and application — not a blanket bar rating

Materials

— CW617N / EN 12165
— CW614N / EN 12164

Finishes

— Natural brass
— Nickel plated

Applications

— Pneumatics
— Water service
— OEM manifolds
— Industrial assemblies

Standards

— ISO 228 (BSP)
— DIN 259
— NPT on request
— Material EN 12164 / EN 12165
— REACH / RoHS against the lot

Inspection

— Thread gauges (go/no-go) on production lots
— Seat / leak-path visual
— Plating on coated lots
— Hex and overall dimensions

Documents with shipment

— Commercial invoice
— Packing list
— Certificate of origin
— Material note against the alloy of the lot
— REACH / RoHS statement on request, against plating and alloy of the lot
— ISO 9001 / 14001 / 45001 PDFs with the first RFQ reply

Standard range

Variants we quote

BSP adaptor / nipple

Male-male, male-female, reducing

Elbow / tee

Equal or reducing, BSP or metric

Hose tail

Barb × BSP for pneumatic and water hose

Compression / special

From sample or drawing

Commercial

Samples, packing, Incoterms

Manufacturer: Satyam Techworks Pvt. Ltd., Dared, Jamnagar — factory direct, not a trader
Alibaba: Gold Supplier · 12 years (since 2014)
Samples: First-article sample before the production lot. Typical sample 10–50 pcs.
MOQ: Quoted against SKU, plating and any tooling. Typical production from 500 pcs for catalogue bars; OEM inserts often 1,000+.
Lead time: Quoted on RFQ. Typical: samples 10–18 days after drawing freeze; production 25–40 days after sample approval.
Incoterms 2020: FOB Mundra / Nhava Sheva. All Incoterms 2020 accepted.
Packing: Poly bag / inner box / export carton. Palletised on request. Carton labels to your warehouse SKU and PO.
Payment: As agreed on the proforma. Standard export terms.
Sizing: Sorted by thread size; mixed cartons labelled per SKU

How to order this item

Send the fields below on the Export Desk RFQ. We reply within one business day with alloy, finish, first-article option and Incoterms 2020 (FOB Mundra / Nhava Sheva; all terms accepted) — as the manufacturer, not a trader.
