Technical sheet · Fasteners

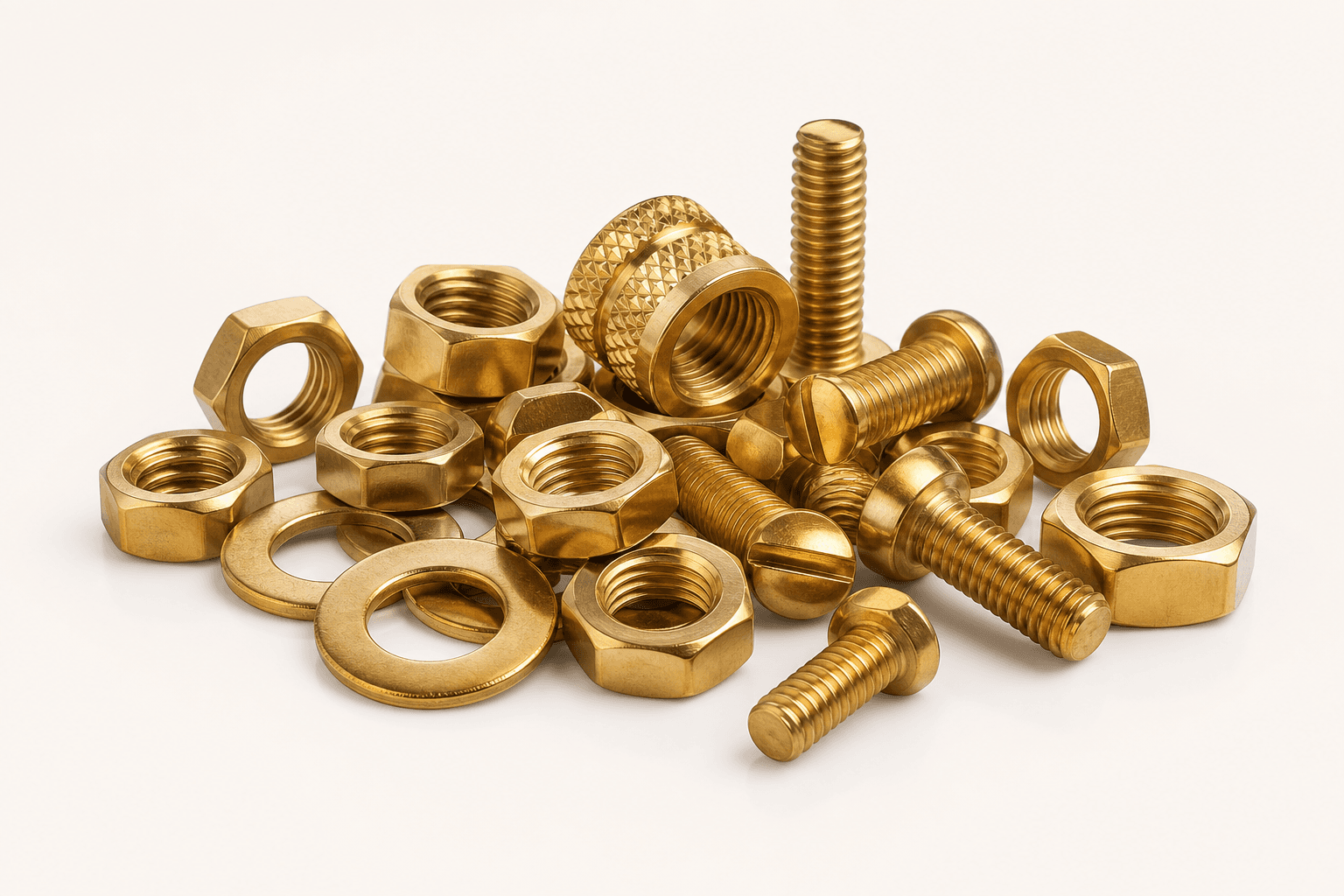

Brass Fasteners (DIN / ISO)

Also designated: DIN 934 hex nuts · DIN 125 washers · Brass machine screws · Brass inserts · Brass threaded inserts

Brass nuts, washers, machine screws and moulding inserts to DIN / ISO — specified by standard number for electrical and plastic-housing OEMs.

Request factory quote First-article sample

General

What this product is

Brass fasteners quoted by the DIN or ISO number, not a catalogue nickname: hex nuts (DIN 934 / ISO 4032), washers (DIN 125 / ISO 7089), machine screws and mould-in / ultrasonic inserts for plastic housings. Electrical and appliance OEMs specify the standard, the alloy and the plating. We quote CW614N, nickel when required, and pack counted to the SKU.

Buyers specify the DIN number, not a catalogue nickname. We quote the standard, the alloy and the plating.

At a glance

— DIN / ISO thread standards
— Hex nuts, washers, machine screws
— Mould-in and ultrasonic inserts
— Nickel plated options

STPL · Gold Supplier 12 yrs · CW614N / EN

Technical data

Specification

Product type: Brass nuts, washers, machine screws, moulding inserts
Nut standards: DIN 934 / ISO 4032 hex nuts — other DIN/ISO on RFQ
Washer standards: DIN 125 / ISO 7089 and related
Screws: Machine screws to drawing or DIN/ISO; head style as specified
Inserts: Mould-in, heat-stake or ultrasonic brass inserts for plastic housings
Threads: Metric M3–M12 typical; other sizes from drawing
Material: CW614N / EN 12164
Finish: Natural brass or nickel plated

Materials

— CW614N / EN 12164

Finishes

— Natural brass
— Nickel plated

Applications

— Electrical housings
— Plastic overmoulding
— General assembly
— Appliance OEM

Standards

— DIN 934 / ISO 4032
— DIN 125 / ISO 7089
— Insert geometry per housing drawing
— REACH / RoHS against the lot

Inspection

— Thread gauges
— Across-flats / OD
— Insert knurl diameter where specified

Documents with shipment

— Commercial invoice
— Packing list
— Certificate of origin
— Material note against the alloy of the lot
— REACH / RoHS statement on request, against plating and alloy of the lot
— ISO 9001 / 14001 / 45001 PDFs with the first RFQ reply

Standard range

Variants we quote

DIN 934 hex nut

Metric, brass, natural or nickel

DIN 125 washer

Brass plain washer

Machine screw

Head and length from drawing

Moulding insert

Knurl OD and thread from housing drawing

Commercial

Samples, packing, Incoterms

Manufacturer: Satyam Techworks Pvt. Ltd., Dared, Jamnagar — factory direct, not a trader
Alibaba: Gold Supplier · 12 years (since 2014)
Samples: First-article sample before the production lot. Typical sample 10–50 pcs.
MOQ: Quoted against SKU, plating and any tooling. Typical production from 500 pcs for catalogue bars; OEM inserts often 1,000+.
Lead time: Quoted on RFQ. Typical: samples 10–18 days after drawing freeze; production 25–40 days after sample approval.
Incoterms 2020: FOB Mundra / Nhava Sheva. All Incoterms 2020 accepted.
Packing: Poly bag / inner box / export carton. Palletised on request. Carton labels to your warehouse SKU and PO.
Payment: As agreed on the proforma. Standard export terms.
Count: Counted bags; small fasteners in inner boxes

How to order this item

Send the fields below on the Export Desk RFQ. We reply within one business day with alloy, finish, first-article option and Incoterms 2020 (FOB Mundra / Nhava Sheva; all terms accepted) — as the manufacturer, not a trader.
