Technical sheet · Neutral links

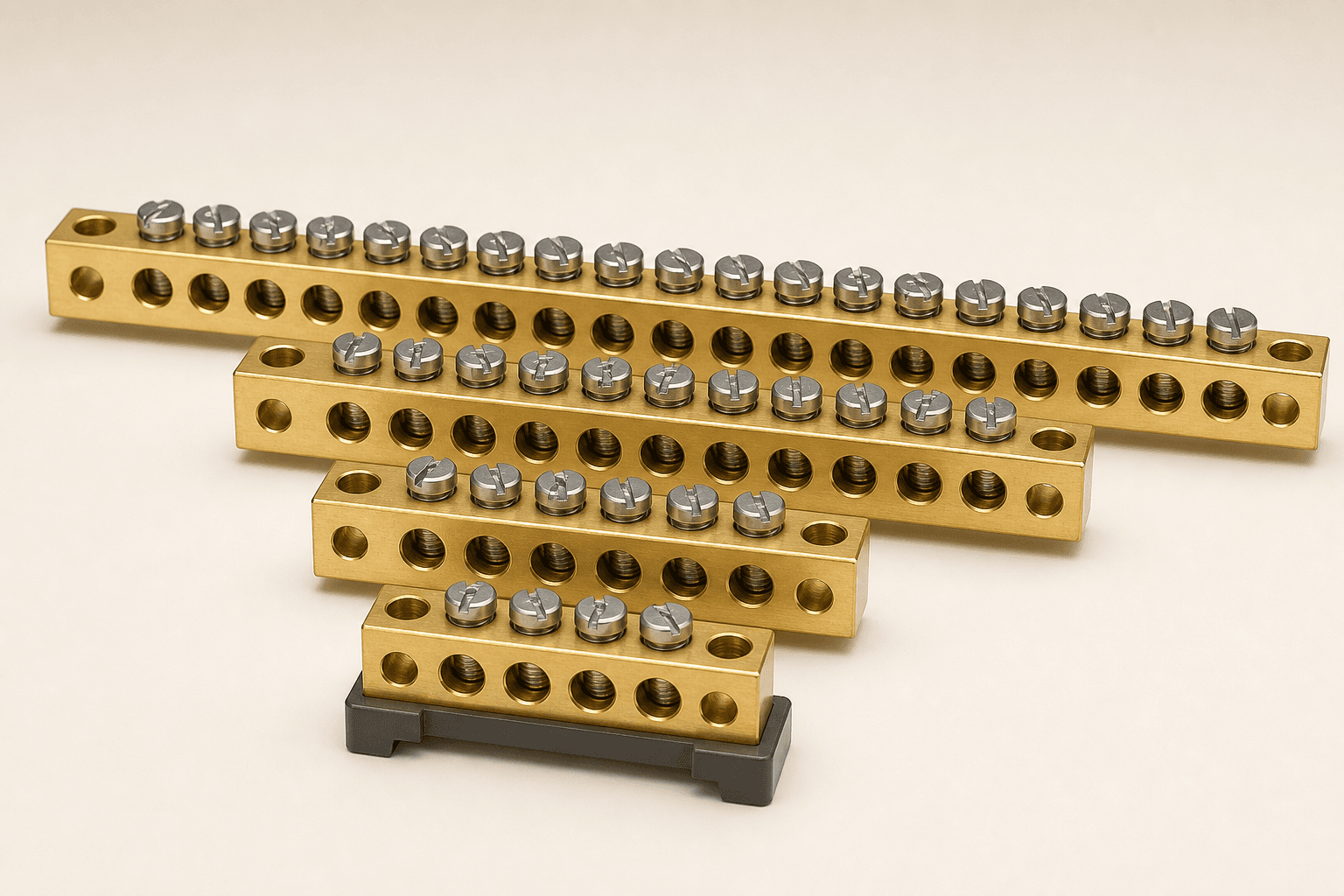

Brass Neutral Links / Neutral Bars
Also designated: Neutral terminal blocks · N-bars · Neutral distribution bars · 4–24 way neutral links · Brass neutral connector
Solid brass neutral links and neutral bars for distribution boards, consumer units and LV switchgear — machined to pitch, thread and plating.
General
What this product is
A brass neutral link (also called an N-bar or neutral terminal block) is the current-carrying bar that collects the neutral conductors in a distribution board. We machine the bar in-house in Jamnagar from CW614N free-cutting brass, tap the clamping screws, plate nickel or tin when specified, and optionally fit an insulated PA66 stand. Ways, pitch, section and screw are drawing-controlled — the same fields a professional RFQ carries. First-article samples are offered before the production lot so incoming inspection matches the approved piece.
Buyers specify ways, pitch (10 / 12.5 / 15 mm), M4–M6 screws and nickel or tin plating. We quote CW614N (CuZn39Pb3 / EN 12164) with first-article samples before production lots.
At a glance
- — 4-way to 24-way and drawing-controlled lengths
- — Pitch 10 / 12.5 / 15 mm or as per drawing
- — Bar section 7×10 / 9×12 / 12.7×12.7 mm
- — M4 / M5 / M6 clamping screws
- — Natural brass, electroless nickel or tin plated
- — Optional insulated PA66 stand
STPL · Gold Supplier 12 yrs · CW614N / EN
Technical data
Specification
- Product type
- Solid brass neutral link / N-bar, with or without insulated base
- Ways
- 4, 6, 8, 10, 12, 16, 18, 20, 24 — other counts and cut-to-length on drawing
- Pitch (centre to centre)
- 10 mm / 12.5 mm / 15 mm, or as per your drawing
- Bar section (H × W)
- 7 × 10 mm · 9 × 12 mm · 12.7 × 12.7 mm · other sections on request
- Overall length
- Calculated from ways × pitch + ends. Configure on the drawing tool, or send your length.
- Clamping screw
- M4 / M5 / M6, slotted, Phillips or combination head. Steel zinc-plated or brass.
- Screw class
- Metric ISO 261 / ISO 262. Thread gauges held on the lot.
- Base / stand
- Bar only, or insulated PA66 (nylon 6.6) stand with mounting holes
- Material
- CW614N (CuZn39Pb3) / EN 12164. CW617N or low-lead grades on request.
- Finish
- Natural brass · electroless nickel · tin. Other plating on RFQ.
- Current duty
- Declared on the quote against bar section, screw and insulation — not a generic website amp rating.
- Typical use voltage
- LV distribution boards and consumer units (specify your system on the RFQ)
- Marking
- Laser / stamped marking or unbranded — as specified
Materials
- — CW614N (CuZn39Pb3) / EN 12164
- — CW617N on request
- — Low-lead grades on request
Finishes
- — Natural brass (unplated)
- — Electroless nickel
- — Tin plated
- — Other plating on RFQ
Applications
- — MCB / RCCB distribution boards
- — Consumer units
- — LV switchgear and MCC panels
- — Metering and incoming chambers
- — OEM panel-builder warehouse SKUs
Standards
- — Material: EN 12164 (CW614N) / EN 12165 (CW617N)
- — Threads: ISO metric
- — Alignment to IEC 60947-7-1 terminal practice on request
- — REACH and RoHS notes against the alloy and plating of the lot
Inspection
- — Pitch and overall length against drawing / first article
- — Screw thread gauges (go/no-go)
- — Plating appearance and adhesion on plated lots
- — Visual for burrs, hole position and stand fit
Documents with shipment
- — Commercial invoice
- — Packing list
- — Certificate of origin
- — Material note against the alloy of the lot
- — REACH / RoHS statement on request, against plating and alloy of the lot
- — ISO 9001 / 14001 / 45001 PDFs with the first RFQ reply
Standard range
Variants we quote
4-way N-bar
Short consumer-unit link, often 10 or 12.5 mm pitch, M4/M5
8-way N-bar
Common DB size — 9×12 mm section, M5, nickel, optional PA66 stand
12-way N-bar
Panel-board length, 12.5 or 15 mm pitch
16–24 way N-bar
Longer distribution bars; length and end-distance from drawing
Combined N+PE
Neutral-earth combined layout — see Earth Bars / PE Bars
Commercial
Samples, packing, Incoterms
- Manufacturer
- Satyam Techworks Pvt. Ltd., Dared, Jamnagar — factory direct, not a trader
- Alibaba
- Gold Supplier · 12 years (since 2014)
- Samples
- First-article sample before the production lot. Typical sample 10–50 pcs.
- MOQ
- Quoted against SKU, plating and any tooling. Typical production from 500 pcs for catalogue bars; OEM inserts often 1,000+.
- Lead time
- Quoted on RFQ. Typical: samples 10–18 days after drawing freeze; production 25–40 days after sample approval.
- Incoterms 2020
- FOB Mundra / Nhava Sheva. All Incoterms 2020 accepted.
- Packing
- Poly bag / inner box / export carton. Palletised on request. Carton labels to your warehouse SKU and PO.
- Payment
- As agreed on the proforma. Standard export terms.
- Typical carton
- Layered in trays or bags by way-count; mixed SKUs labelled separately
How to order this item
Send the fields below on the Export Desk RFQ. We reply within one business day with alloy, finish, first-article option and Incoterms 2020 (FOB Mundra / Nhava Sheva; all terms accepted) — as the manufacturer, not a trader.
- 01Product name as listed here (or your Alibaba / internal SKU)
- 02Drawing, STEP/PDF or approved sample
- 03Alloy if known (CW614N / CW617N / other)
- 04Finish (natural brass / nickel / tin) and any salt-spray note
- 05Annual quantity and first PO size
- 06Destination port and Incoterm
- 07Inspection standard and required documents
