Technical sheet · Stop plugs

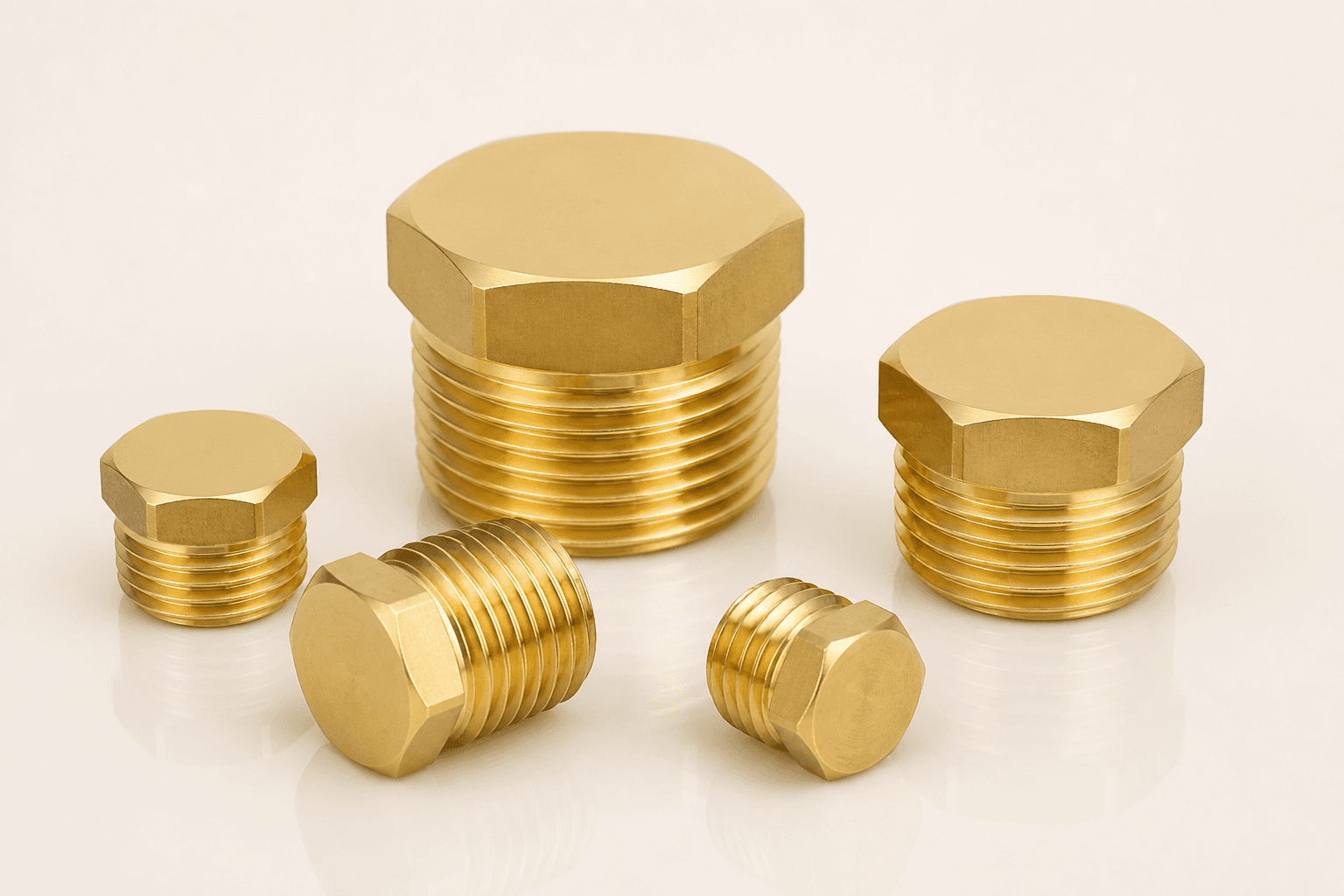

Brass Stop Plugs / Hex Plugs

Also designated: Hex plugs · Threaded blanks · Manifold plugs · Brass blanking plugs

Sealing plugs machined to hex and thread class for leak-resistant joints — BSP, NPT and metric.

Request factory quote First-article sample

General

What this product is

Brass stop plugs (hex plugs, blanking plugs) close unused ports on manifolds, valves and pneumatic blocks. They look simple and fail incoming inspection when hex across-flats or thread class drifts. We machine BSP, NPT and metric plugs, slotted or hex head, and hold gauges on every lot. Nickel plating is available for appearance and corrosion.

Simple parts that fail incoming inspection if hex or thread drifts. We hold gauges on every lot.

At a glance

— Hex and slotted heads
— BSP / NPT / metric
— Thread gauges on every lot
— Nickel plated option

STPL · Gold Supplier 12 yrs · CW614N / EN

Technical data

Specification

Product type: Brass stop plug / hex plug / blanking plug
Head: Hex (across-flats as per size) or slotted
Threads: BSPP / BSPT, NPT, metric — size on RFQ
Typical sizes: 1/8" to 1" and metric equivalents; others from drawing
Material: CW614N / EN 12164
Finish: Natural brass or nickel plated
Sealing: Taper thread or parallel + washer/O-ring as specified — washer not included unless asked

Materials

— CW614N / EN 12164

Finishes

— Natural brass
— Nickel plated

Applications

— Hydraulic / pneumatic blanks
— Manifolds
— Valve unused ports

Standards

— ISO 228 / NPT / metric as specified
— Material EN 12164

Inspection

— Thread gauges
— Hex across-flats
— Length / head height

Documents with shipment

— Commercial invoice
— Packing list
— Certificate of origin
— Material note against the alloy of the lot
— REACH / RoHS statement on request, against plating and alloy of the lot
— ISO 9001 / 14001 / 45001 PDFs with the first RFQ reply

Standard range

Variants we quote

BSP hex plug

Parallel or taper as specified

NPT hex plug

Taper, gauged

Slotted plug

Flush or low-profile for manifolds

Commercial

Samples, packing, Incoterms

Manufacturer: Satyam Techworks Pvt. Ltd., Dared, Jamnagar — factory direct, not a trader
Alibaba: Gold Supplier · 12 years (since 2014)
Samples: First-article sample before the production lot. Typical sample 10–50 pcs.
MOQ: Quoted against SKU, plating and any tooling. Typical production from 500 pcs for catalogue bars; OEM inserts often 1,000+.
Lead time: Quoted on RFQ. Typical: samples 10–18 days after drawing freeze; production 25–40 days after sample approval.
Incoterms 2020: FOB Mundra / Nhava Sheva. All Incoterms 2020 accepted.
Packing: Poly bag / inner box / export carton. Palletised on request. Carton labels to your warehouse SKU and PO.
Payment: As agreed on the proforma. Standard export terms.

How to order this item

Send the fields below on the Export Desk RFQ. We reply within one business day with alloy, finish, first-article option and Incoterms 2020 (FOB Mundra / Nhava Sheva; all terms accepted) — as the manufacturer, not a trader.
