Technical sheet · Valves

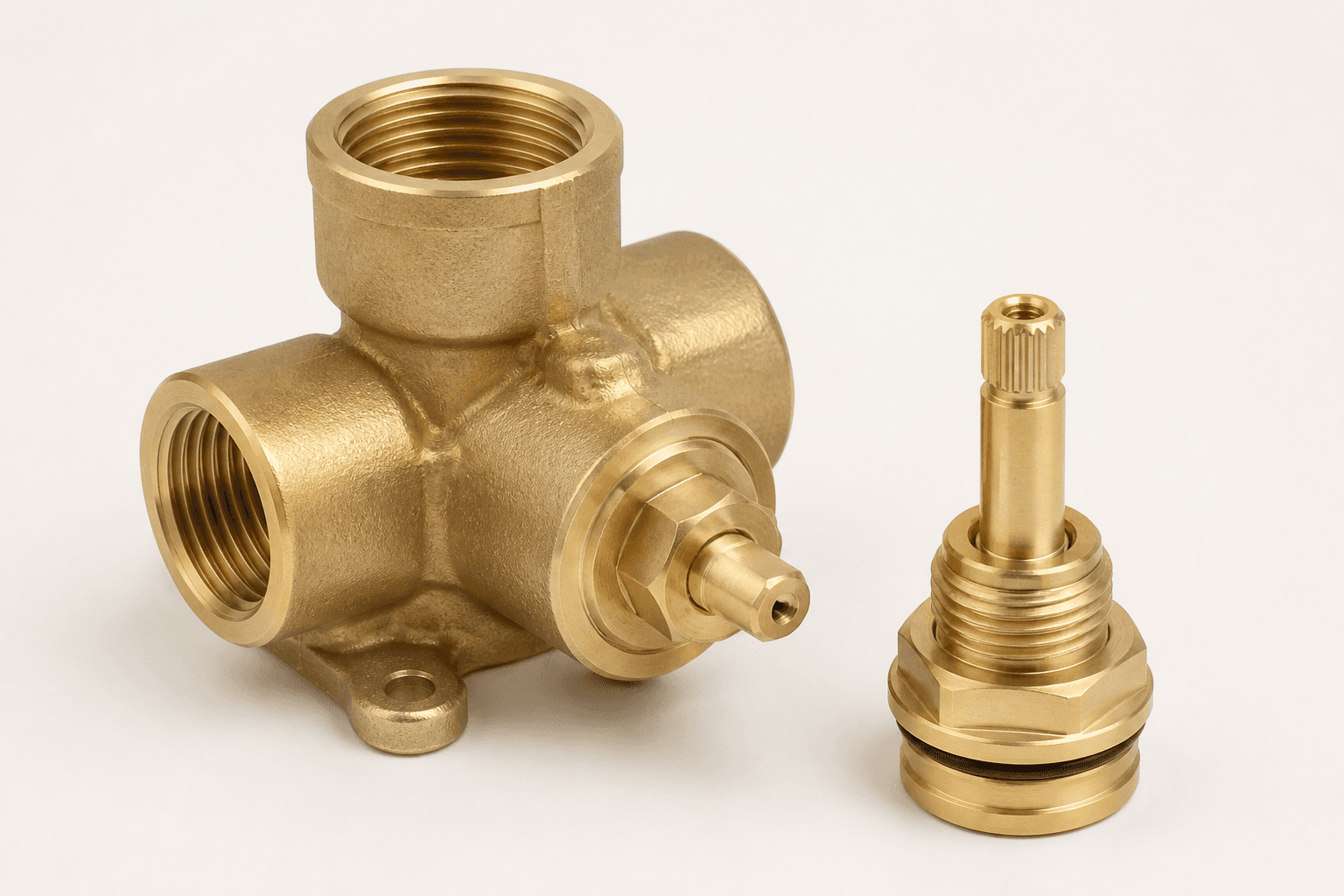

Brass Valve Bodies & Trims

Also designated: Valve bodies · Valve trims · Water-service brass · Brass valve components

Valve bodies and trims in CW617N for industrial and water-service programmes — repeat lots, not one-off samples.

Request factory quote First-article sample

General

What this product is

Brass valve bodies and trims for industrial and water-service programmes. We machine ports, seats and trims so the second container matches the first: stable forge-to-machine or bar-to-machine routes, not a different shop each lot. Bodies, bonnet parts and internal trims are quoted from drawing or sample. Pressure and media must be named on the RFQ; we do not publish a generic PN rating on the website.

Stable forge-to-machine routes for importers who need the second container to match the first.

At a glance

— Bodies and trims from drawing or sample
— CW617N pressure-duty brass
— Custom ports and threads
— Repeat production lots

STPL · Gold Supplier 12 yrs · CW614N / EN

Technical data

Specification

Product type: Brass valve body, bonnet part, seat or trim — not a complete branded valve unless specified
Material: CW617N typical for bodies; CW614N for some trims
Ports: BSP / ISO 228 / metric / NPT as per drawing
Size range: As per drawing — typical small-bore industrial and water-service sizes
Pressure / media: Named by the buyer on the RFQ; rating declared on the quote
Process: Machined from bar or forged blank, then secondary ops and inspection

Materials

— CW617N / EN 12165
— CW614N for trims

Finishes

— Natural brass
— Nickel plated on request

Applications

— Industrial valves
— Water service
— OEM valve brands

Standards

— Material EN 12165 / EN 12164
— Thread ISO 228 / NPT as specified
— REACH / RoHS against the lot

Inspection

— Port threads
— Seat geometry vs first article
— Critical dimensions

Documents with shipment

— Commercial invoice
— Packing list
— Certificate of origin
— Material note against the alloy of the lot
— REACH / RoHS statement on request, against plating and alloy of the lot
— ISO 9001 / 14001 / 45001 PDFs with the first RFQ reply

Standard range

Variants we quote

Valve body

Ports and seat from drawing

Trim / stem parts

CW614N or as specified

Bonnet / cap

Threaded or union as per sample

Commercial

Samples, packing, Incoterms

Manufacturer: Satyam Techworks Pvt. Ltd., Dared, Jamnagar — factory direct, not a trader
Alibaba: Gold Supplier · 12 years (since 2014)
Samples: First-article sample before the production lot. Typical sample 10–50 pcs.
MOQ: Quoted against SKU, plating and any tooling. Typical production from 500 pcs for catalogue bars; OEM inserts often 1,000+.
Lead time: Quoted on RFQ. Typical: samples 10–18 days after drawing freeze; production 25–40 days after sample approval.
Incoterms 2020: FOB Mundra / Nhava Sheva. All Incoterms 2020 accepted.
Packing: Poly bag / inner box / export carton. Palletised on request. Carton labels to your warehouse SKU and PO.
Payment: As agreed on the proforma. Standard export terms.

How to order this item

Send the fields below on the Export Desk RFQ. We reply within one business day with alloy, finish, first-article option and Incoterms 2020 (FOB Mundra / Nhava Sheva; all terms accepted) — as the manufacturer, not a trader.
