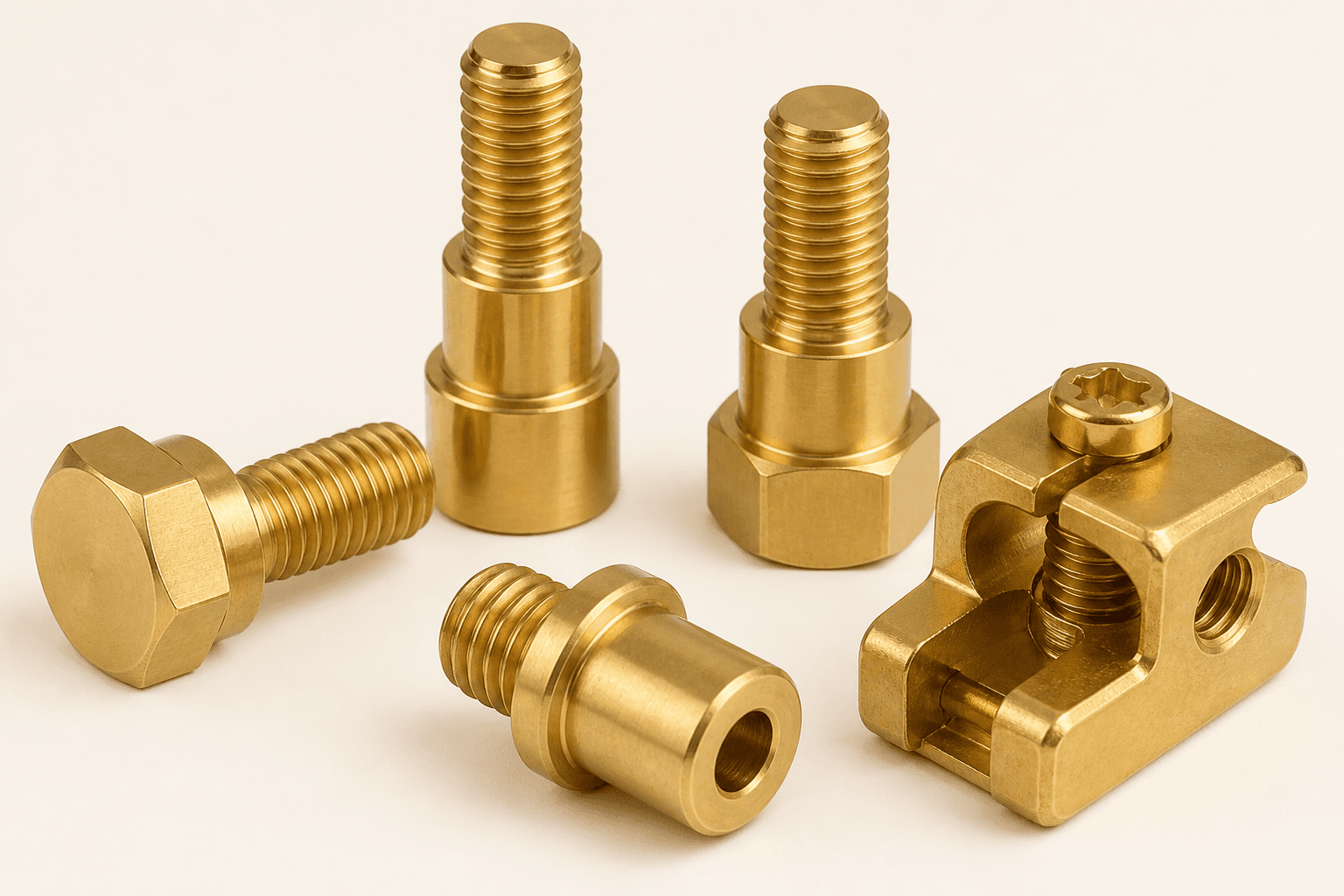

Brass Switchgear & Meter Terminals

Also designated: Energy meter terminals · HRC fuse parts · Current-carrying brass parts · Switchgear contacts

Current-carrying brass parts for switchgear, HRC fuse fittings and energy-meter terminals — custom CNC from sample or STEP/PDF.

Request factory quote First-article sample

General

What this product is

Confidential current-carrying brass parts for LV switchgear, HRC fuse fittings and energy-meter terminals. These are not catalogue nicknames — they are OEM parts reverse-engineered from a sample or machined from the buyer’s drawing. We turn and mill CW614N / CW617N, plate as specified, and pack to the warehouse standard. Material notes are issued against the alloy of the lot. Drawings stay with the programme.

Confidential OEM parts with plating and export packing to your warehouse standard. Material notes issued against the alloy of the lot.

At a glance

— CNC turned and milled
— From sample or STEP/PDF
— Plating as specified
— Export packing / labelled cartons
— First-article inspection

STPL · Gold Supplier 12 yrs · CW614N / EN

Technical data

Specification

Product type: Custom current-carrying brass: meter terminals, fuse parts, switchgear contacts
Process: CNC turning, milling, secondary drilling/tapping, plating
Input: STEP / PDF / 2D drawing, or physical sample for reverse
Material: CW614N / CW617N as specified
Finish: Natural, nickel, tin, or as specified
Tolerance: As per drawing; first-article report on request
Confidentiality: Customer drawings are not shown in the public catalogue

Materials

— CW614N
— CW617N

Finishes

— Natural brass
— Nickel
— Tin
— As specified

Applications

— LV switchgear
— Energy meters
— HRC fuse gear
— OEM electrical assemblies

Standards

— Material EN 12164 / EN 12165
— Buyer’s type-test / factory standard
— REACH / RoHS against the lot

Inspection

— First-article vs drawing
— Production gauges on criticals
— Plating on coated lots

Documents with shipment

— Commercial invoice
— Packing list
— Certificate of origin
— Material note against the alloy of the lot
— REACH / RoHS statement on request, against plating and alloy of the lot
— ISO 9001 / 14001 / 45001 PDFs with the first RFQ reply

Standard range

Variants we quote

Energy-meter terminal

Stud / clamp geometry from meter OEM drawing

HRC fuse fitting part

Contact or holder brass, plated as specified

Switchgear contact / link

Turned or milled current path

Commercial

Samples, packing, Incoterms

Manufacturer: Satyam Techworks Pvt. Ltd., Dared, Jamnagar — factory direct, not a trader
Alibaba: Gold Supplier · 12 years (since 2014)
Samples: First-article sample before the production lot. Typical sample 10–50 pcs.
MOQ: Quoted against SKU, plating and any tooling. Typical production from 500 pcs for catalogue bars; OEM inserts often 1,000+.
Lead time: Quoted on RFQ. Typical: samples 10–18 days after drawing freeze; production 25–40 days after sample approval.
Incoterms 2020: FOB Mundra / Nhava Sheva. All Incoterms 2020 accepted.
Packing: Poly bag / inner box / export carton. Palletised on request. Carton labels to your warehouse SKU and PO.
Payment: As agreed on the proforma. Standard export terms.

How to order this item

Send the fields below on the Export Desk RFQ. We reply within one business day with alloy, finish, first-article option and Incoterms 2020 (FOB Mundra / Nhava Sheva; all terms accepted) — as the manufacturer, not a trader.
