Multi-Position terminal block · Technical sheet

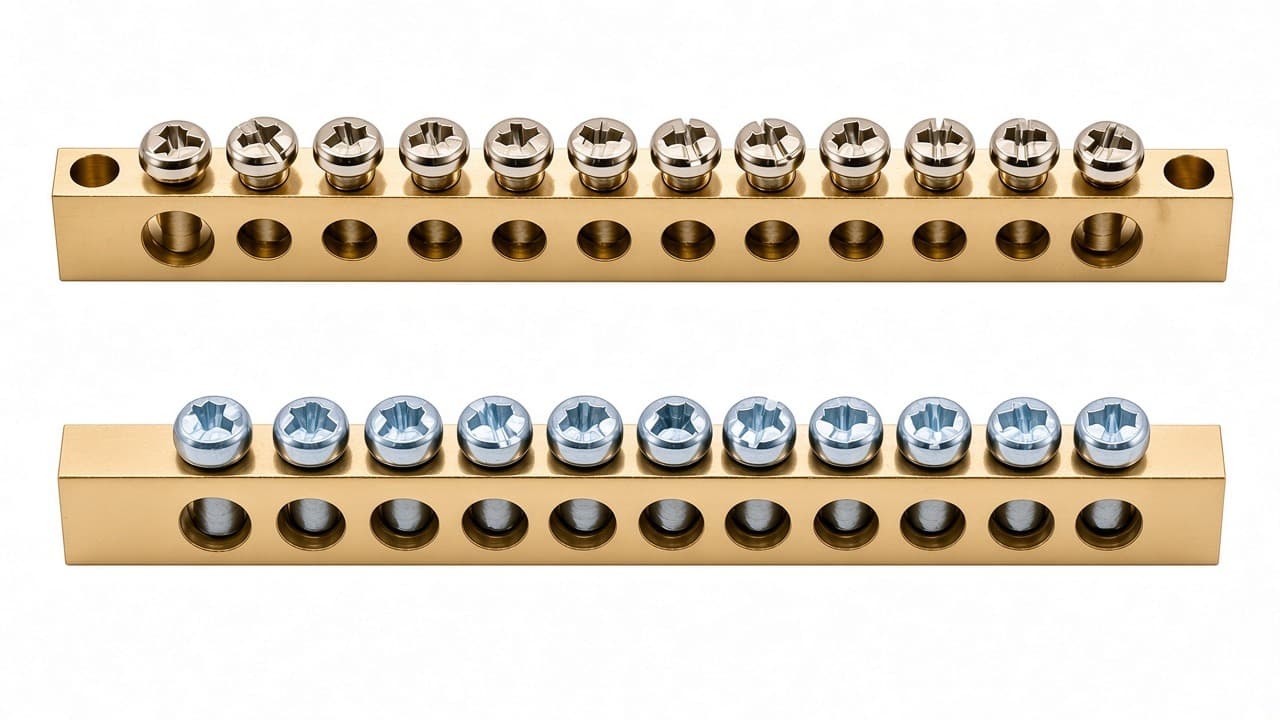

Screw assembled Copper Busbar

Also designated: Screw-assembled brass busbar · Neutral bar with screws · Assembled N-bar

Multi-position brass busbar supplied with clamping screws fitted — the screw-assembled SKU from the factory store.

Request factory quote First-article sample

General

What this product is

Screw assembled copper busbar is the store name for our multi-position brass terminal bar shipped with screws already fitted. We machine the bar in CW614N, tap the ways and assemble slotted, Phillips or combination screws as specified. Hole count, pitch and plating follow the drawing or the approved sample.

The same multi-position terminal bars listed on our Alibaba store. Ways, screws and plating are drawing-controlled in CW614N.

At a glance

— Screws assembled on the bar
— Hole count and pitch from drawing / sample
— CW614N brass
— Natural, nickel or tin

STPL · Gold Supplier 12 yrs · CW614N / EN

Technical data

Specification

Product type: Multi-position brass busbar / terminal bar, screws assembled
Holes / ways: As photographed and as specified on RFQ
Screws: Fitted — slotted, Phillips or combination; steel zinc-plated or brass
Material: CW614N (CuZn39Pb3) / EN 12164
Finish: Natural brass · electroless nickel · tin

Materials

— CW614N (CuZn39Pb3) / EN 12164
— CW617N on request

Finishes

— Natural brass
— Electroless nickel
— Tin plated

Applications

— Distribution boards and consumer units
— LV switchgear and control panels
— Neutral / earth collector bars
— OEM panel-builder warehouse SKUs

Standards

— Material EN 12164 (CW614N)
— Threads ISO metric
— REACH / RoHS against the lot

Inspection

— Hole count and pitch vs first article
— Screw fit where assembled
— Visual for burrs

Documents with shipment

— Commercial invoice
— Packing list
— Certificate of origin
— Material note against the alloy of the lot
— REACH / RoHS statement on request, against plating and alloy of the lot
— ISO 9001 / 14001 / 45001 PDFs with the first RFQ reply

Standard range

Variants we quote

Nickel-screw assembled

Brass bar, nickel or zinc-plated screws fitted

Brass-screw assembled

Brass screws on the bar

Commercial

Samples, packing, Incoterms

Manufacturer: Satyam Techworks Pvt. Ltd., Dared, Jamnagar — factory direct, not a trader
Alibaba: Gold Supplier · 12 years (since 2014)
Samples: First-article sample before the production lot. Typical sample 10–50 pcs.
MOQ: Quoted against SKU, plating and any tooling. Typical production from 500 pcs for catalogue bars; OEM inserts often 1,000+.
Lead time: Quoted on RFQ. Typical: samples 10–18 days after drawing freeze; production 25–40 days after sample approval.
Incoterms 2020: FOB Mundra / Nhava Sheva. All Incoterms 2020 accepted.
Packing: Poly bag / inner box / export carton. Palletised on request. Carton labels to your warehouse SKU and PO.
Payment: As agreed on the proforma. Standard export terms.
Typical carton: Layered by hole-count / SKU; mixed lots labelled separately

How to order this item

Send the fields below on the Export Desk RFQ. We reply within one business day with alloy, finish, first-article option and Incoterms 2020 (FOB Mundra / Nhava Sheva; all terms accepted) — as the manufacturer, not a trader.
