Brass Earth Bars / PE Bars

Also designated: Earth links · PE bars · Neutral-earth combined bars · Earthing terminal bars · PEN bars

Protective-earth bars and combined N+PE links for panel boards. Buyers call these earth bars or PE bars — we machine hole pattern, thread and plating to drawing.

Request factory quote First-article sample

General

What this product is

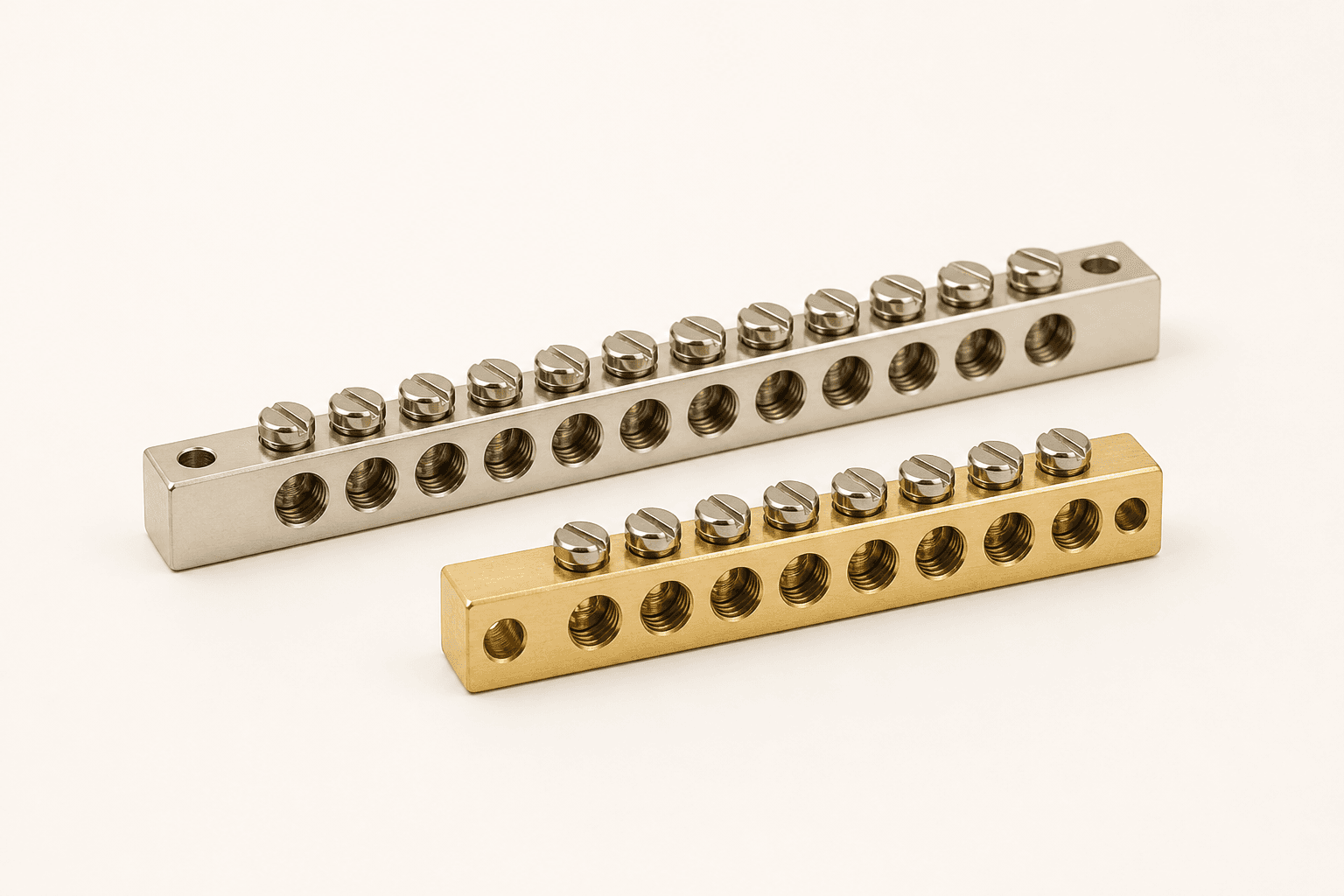

A brass earth bar (PE bar) is the protective-earth collector in a distribution board or control panel. Combined N+PE / PEN layouts are machined on the same plant when the drawing calls for a shared bar. Hole pitch, thread, plating and mounting are held to gauge because earthing bars fail incoming audits when pitch drifts. Nickel or tin is specified for corrosion and contact; natural brass is available for indoor dry panels.

Earthing bars fail audits when pitch drifts. We hold gauges, plate nickel or tin, and pack with inspection notes for warehouse SKUs.

At a glance

— Solid brass PE bar, drawing-controlled hole pattern
— Tapped or through holes
— Combined N+E / PEN layouts
— Nickel or tin plating
— Optional insulated stand

STPL · Gold Supplier 12 yrs · CW614N / EN

Technical data

Specification

Product type: Protective-earth (PE) bar, earth link, or combined N+PE / PEN bar
Bar section: As per drawing — common 6×9, 9×12, 12×15 mm and square sections
Length: Cut-to-length from drawing or from number of ways × pitch
Holes: Tapped (M4 / M5 / M6) or through holes; mixed patterns on request
Pitch: 10 / 12.5 / 15 mm or as per panel drawing
Mounting: Insulated stand, panel studs, or bare bar for OEM assembly
Material: CW614N / EN 12164. CW617N on request.
Finish: Natural brass · nickel · tin
Identification: Unmarked, or PE / earth marking as specified (green-yellow sleeve not included unless asked)

Materials

— CW614N / EN 12164
— CW617N on request

Finishes

— Natural brass
— Electroless nickel
— Tin plated

Applications

— Protective earthing in distribution boards
— Control panels and MCC
— Transformer and switch rooms
— Metering cabinets

Standards

— Material EN 12164 / EN 12165
— Protective-earth identification to the buyer’s panel standard
— REACH / RoHS against the lot

Inspection

— Hole position and pitch vs drawing
— Thread gauges on tapped holes
— Plating on coated lots
— Length and section

Documents with shipment

— Commercial invoice
— Packing list
— Certificate of origin
— Material note against the alloy of the lot
— REACH / RoHS statement on request, against plating and alloy of the lot
— ISO 9001 / 14001 / 45001 PDFs with the first RFQ reply

Standard range

Variants we quote

PE bar only

Protective earth collector, tapped holes, nickel or tin

Earth link strip

Short link for consumer units

Combined N+PE

Shared bar with defined N and PE zones from drawing

Transformer-room earth bar

Heavier section, through holes, longer lengths

Commercial

Samples, packing, Incoterms

Manufacturer: Satyam Techworks Pvt. Ltd., Dared, Jamnagar — factory direct, not a trader
Alibaba: Gold Supplier · 12 years (since 2014)
Samples: First-article sample before the production lot. Typical sample 10–50 pcs.
MOQ: Quoted against SKU, plating and any tooling. Typical production from 500 pcs for catalogue bars; OEM inserts often 1,000+.
Lead time: Quoted on RFQ. Typical: samples 10–18 days after drawing freeze; production 25–40 days after sample approval.
Incoterms 2020: FOB Mundra / Nhava Sheva. All Incoterms 2020 accepted.
Packing: Poly bag / inner box / export carton. Palletised on request. Carton labels to your warehouse SKU and PO.
Payment: As agreed on the proforma. Standard export terms.

How to order this item

Send the fields below on the Export Desk RFQ. We reply within one business day with alloy, finish, first-article option and Incoterms 2020 (FOB Mundra / Nhava Sheva; all terms accepted) — as the manufacturer, not a trader.
