Multi-Position terminal block · Technical sheet

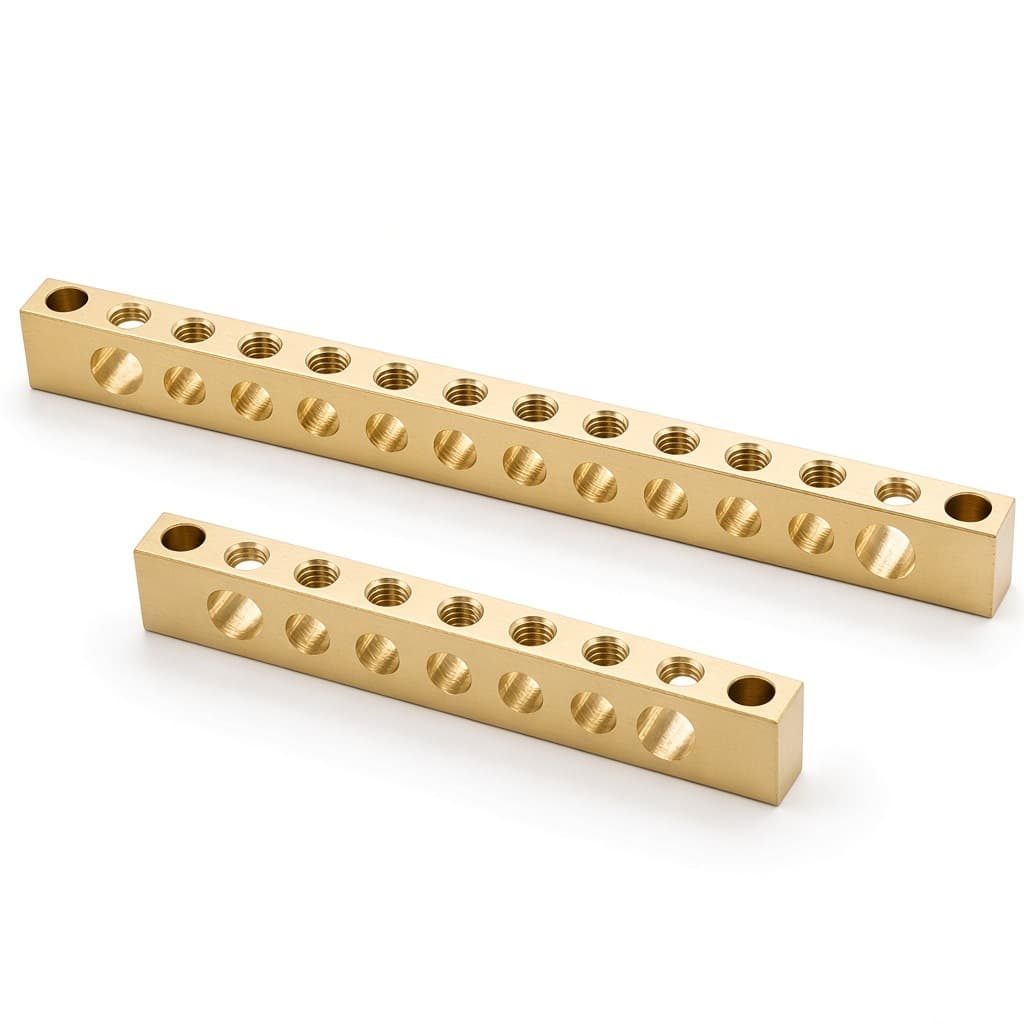

Screw less Copper Busbar

Also designated: Screwless brass busbar · Bare N-bar · Busbar without screws

Multi-position brass busbar supplied without screws — the screw-less SKU for buyers who fit their own hardware.

Request factory quote First-article sample

General

What this product is

Screw less copper busbar is the drilled and tapped bar only. No screws in the carton. Panel builders use this when they specify their own screw class or assemble in-house. Pitch, ways and plating are held to the same gauges as the assembled SKU.

The same multi-position terminal bars listed on our Alibaba store. Ways, screws and plating are drawing-controlled in CW614N.

At a glance

— Bar only — no screws packed
— Tapped or through holes as specified
— CW614N brass
— Natural, nickel or tin

STPL · Gold Supplier 12 yrs · CW614N / EN

Technical data

Specification

Product type: Multi-position brass busbar / terminal bar, screws not fitted
Holes / ways: As photographed and as specified on RFQ
Screws: Not included — supply separately or see Screw assembled Copper Busbar
Material: CW614N (CuZn39Pb3) / EN 12164
Finish: Natural brass · electroless nickel · tin

Materials

— CW614N (CuZn39Pb3) / EN 12164
— CW617N on request

Finishes

— Natural brass
— Electroless nickel
— Tin plated

Applications

— Distribution boards and consumer units
— LV switchgear and control panels
— Neutral / earth collector bars
— OEM panel-builder warehouse SKUs

Standards

— Material EN 12164 (CW614N)
— Threads ISO metric
— REACH / RoHS against the lot

Inspection

— Hole count and pitch vs first article
— Screw fit where assembled
— Visual for burrs

Documents with shipment

— Commercial invoice
— Packing list
— Certificate of origin
— Material note against the alloy of the lot
— REACH / RoHS statement on request, against plating and alloy of the lot
— ISO 9001 / 14001 / 45001 PDFs with the first RFQ reply

Standard range

Variants we quote

Tapped bar

M4 / M5 / M6 as specified

Through-hole bar

Clear holes for OEM screws

Commercial

Samples, packing, Incoterms

Manufacturer: Satyam Techworks Pvt. Ltd., Dared, Jamnagar — factory direct, not a trader
Alibaba: Gold Supplier · 12 years (since 2014)
Samples: First-article sample before the production lot. Typical sample 10–50 pcs.
MOQ: Quoted against SKU, plating and any tooling. Typical production from 500 pcs for catalogue bars; OEM inserts often 1,000+.
Lead time: Quoted on RFQ. Typical: samples 10–18 days after drawing freeze; production 25–40 days after sample approval.
Incoterms 2020: FOB Mundra / Nhava Sheva. All Incoterms 2020 accepted.
Packing: Poly bag / inner box / export carton. Palletised on request. Carton labels to your warehouse SKU and PO.
Payment: As agreed on the proforma. Standard export terms.
Typical carton: Layered by hole-count / SKU; mixed lots labelled separately

How to order this item

Send the fields below on the Export Desk RFQ. We reply within one business day with alloy, finish, first-article option and Incoterms 2020 (FOB Mundra / Nhava Sheva; all terms accepted) — as the manufacturer, not a trader.
