Multi-Position terminal block · Technical sheet

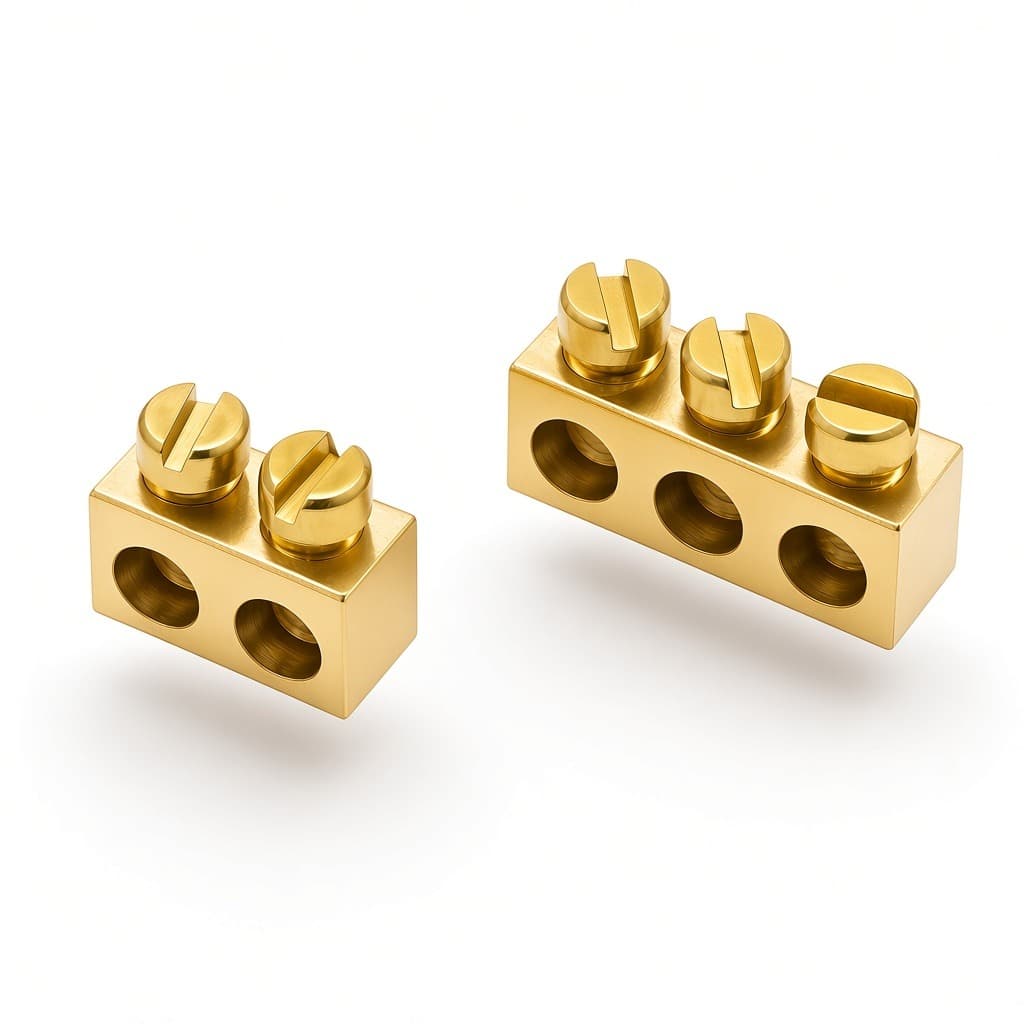

2 to 4 Hole Copper Busbar

Also designated: 2 hole busbar · 3 hole busbar · 4 hole busbar · Short terminal bar

Short brass busbar, 2 to 4 holes — compact links for consumer units and small boards.

Request factory quote First-article sample

General

What this product is

2 to 4 hole copper busbar is the short multi-position bar: two, three or four ways. Typical for compact consumer-unit links and small distribution blocks. Screws, pitch and plating as specified.

The same multi-position terminal bars listed on our Alibaba store. Ways, screws and plating are drawing-controlled in CW614N.

At a glance

— 2, 3 or 4 holes
— Short body
— Screws on request
— CW614N brass

STPL · Gold Supplier 12 yrs · CW614N / EN

Technical data

Specification

Product type: Short brass busbar / terminal bar, 2–4 holes
Holes: 2, 3 or 4 — confirm on RFQ
Screws: Fitted or bar only, as specified
Material: CW614N (CuZn39Pb3) / EN 12164
Finish: Natural brass · electroless nickel · tin

Materials

— CW614N (CuZn39Pb3) / EN 12164
— CW617N on request

Finishes

— Natural brass
— Electroless nickel
— Tin plated

Applications

— Distribution boards and consumer units
— LV switchgear and control panels
— Neutral / earth collector bars
— OEM panel-builder warehouse SKUs

Standards

— Material EN 12164 (CW614N)
— Threads ISO metric
— REACH / RoHS against the lot

Inspection

— Hole count and pitch vs first article
— Screw fit where assembled
— Visual for burrs

Documents with shipment

— Commercial invoice
— Packing list
— Certificate of origin
— Material note against the alloy of the lot
— REACH / RoHS statement on request, against plating and alloy of the lot
— ISO 9001 / 14001 / 45001 PDFs with the first RFQ reply

Standard range

Variants we quote

2-hole

Shortest link

3-hole

As photographed

4-hole

Compact 4-way

Commercial

Samples, packing, Incoterms

Manufacturer: Satyam Techworks Pvt. Ltd., Dared, Jamnagar — factory direct, not a trader
Alibaba: Gold Supplier · 12 years (since 2014)
Samples: First-article sample before the production lot. Typical sample 10–50 pcs.
MOQ: Quoted against SKU, plating and any tooling. Typical production from 500 pcs for catalogue bars; OEM inserts often 1,000+.
Lead time: Quoted on RFQ. Typical: samples 10–18 days after drawing freeze; production 25–40 days after sample approval.
Incoterms 2020: FOB Mundra / Nhava Sheva. All Incoterms 2020 accepted.
Packing: Poly bag / inner box / export carton. Palletised on request. Carton labels to your warehouse SKU and PO.
Payment: As agreed on the proforma. Standard export terms.
Typical carton: Layered by hole-count / SKU; mixed lots labelled separately

How to order this item

Send the fields below on the Export Desk RFQ. We reply within one business day with alloy, finish, first-article option and Incoterms 2020 (FOB Mundra / Nhava Sheva; all terms accepted) — as the manufacturer, not a trader.
